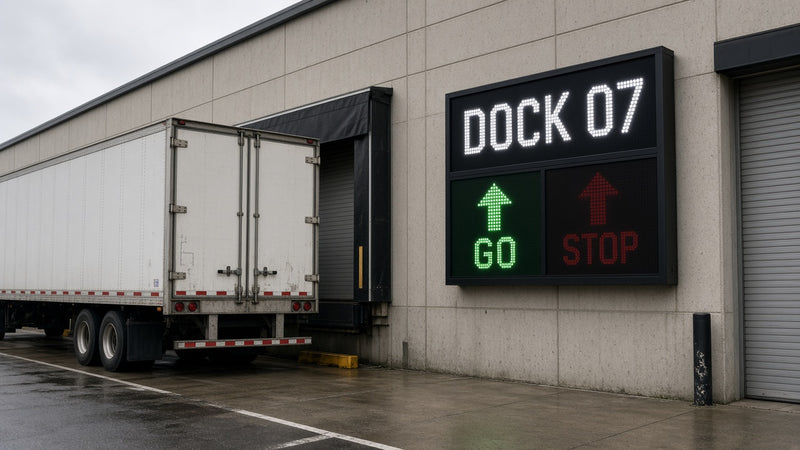

Loading Dock LED Signal Sign (Stop/Go with Door Number)
SKU: IND-DOCK
Warranty
3 years warranty on parts
Control
App + HDPlayer Software
Price on request
Premium Duty signs require professional installation services.
Please request a quote by email: info@proledsigntech.com
Request a QuoteMade to order — not ready-made
About 1 week to manufacture, then plus shipping time.
Download datasheet
Product Specifications
Make every dock door clear to drivers and forklift operators. The PRO-LED Loading Dock LED Signal Sign shows STOP or GO with the door number in large LED characters. It can be switched manually or follow inputs from a vehicle restraint, door sensor or your warehouse management system.
Key Features
- Large STOP / GO status with dock door number
- Red and green status colours, easy to read at a distance
- Outdoor weatherproof enclosure for the drive approach
- Inputs from vehicle restraint, door sensor or dock controls
- Optional link to WMS / yard management for door assignment
- Inside and outside signals to coordinate driver and forklift
- Optional flashing and audible alert
Features, Options & Inputs
All items below are optional or configurable. Availability and configuration are confirmed with your quote.
| Feature / Input | Function | Typical Use | Display / Output |
|---|---|---|---|
| Manual switch Optional | Operator sets STOP or GO | Simple docks without controls | STOP / GO |
| Vehicle restraint input Optional | Follows the restraint locked / unlocked status | Interlocked dock safety | GO inside when locked, STOP outside |
| Dock door sensor Optional | Detects the overhead door open or closed | Prevent departure while the door is open | Status change |
| Dock leveler input Optional | Reads leveler position | Signal when the leveler is in use | Status change |
| Trailer presence sensor Optional | Detects a trailer at the door | Show door occupied / available | Occupied / free |
| WMS / yard system link Optional | Receives door assignment and messages over the network | Direct drivers to the right door | Door number, carrier or message |
| PLC dry contact / 24 V input Optional | Accepts signals from existing dock controls | Integration with current systems | Any status |
| Buzzer / strobe output Optional | Audible or visual alert | Truck backing in or departure warning | Sound / flash |
| Inside + outside signals Optional | Paired signs for both sides of the door | Coordinate driver and forklift operator | Opposite STOP / GO |
| Outdoor weatherproof enclosure Optional | Built for the drive approach | Mounted beside or above the dock door | — |
Tell us where the sign will go and which options you need. We will recommend a configuration and send a quote. Email info@proledsigntech.com or call (+1) 647-478-8343.
Technical Specifications
| Sign Type | Full Color Window Sign |
|---|---|
| Brightness | 4500 nits |
| Control Method | LedArt Mobile App (WiFi) + HDPlayer computer software (Windows) |
| Warranty | 3 years warranty on parts |
| Power | 110V AC (standard plug) |
| Made In | Canada (with global components) |
How It Works
Download the LedArt App
Available on App Store and Google Play.
Connect to Your Sign
Connect to your sign’s Wi-Fi network (see label on sign or documentation)
Type Your Message
Supports text, effects, and scheduling.
Send & Display Instantly
Changes appear in seconds.
You can also create and send programs using HDPlayer on Windows. Download software →
