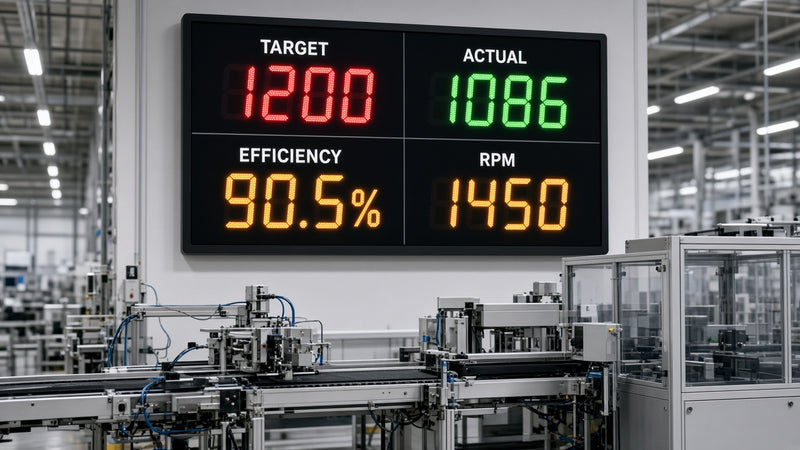

Industrial LED Production Counter Board with Optional Sensors
SKU: IND-COUNT-BOARD
Warranty
3 years warranty on parts
Control
App + HDPlayer Software
Price on request
Premium Duty signs require professional installation services.
Please request a quote by email: info@proledsigntech.com
Request a QuoteMade to order — not ready-made
About 1 week to manufacture, then plus shipping time.
Download datasheet
Product Specifications
The PRO-LED Industrial LED Production Counter Board puts your line's performance on the wall where everyone can see it. It counts production automatically and shows target versus actual, efficiency and shift time in large, bright digits. Optional plug-in sensors and inputs let you add speed, operator calls, alarms and environmental readings to suit your process.
Key Features
- Automatic production counting from a sensor or machine signal
- Target vs. actual display, with the gap shown at a glance
- Efficiency % calculated in real time
- Shift timers and clock, with automatic reset at shift change
- Downtime tracking and alerts
- Colour-coded red / green / amber status
- Optional plug-in sensors and inputs, configured to your line (see table below)
- Sizes, layout and fields configured to your application
Optional Sensors & Inputs
All items below are optional modules. Availability and configuration are confirmed with your quote.
| Sensor / Input | Function | Typical Use | Display / Output |
|---|---|---|---|
| Photoelectric / infrared sensor Optional | Detects parts passing a point on the line | Automatic part and carton counting on conveyors | Adds to ACTUAL count |
| Inductive proximity sensor Optional | Detects metal parts or machine strokes without contact | Press strokes, metal part counting, cycle detection | Adds to ACTUAL count / cycle count |
| Rotary encoder / tachometer Optional | Measures shaft rotation and speed | Spindle, roller, motor and conveyor speed | RPM / speed reading |
| PLC dry contact / 24 V digital input Optional | Accepts on/off signals from machines and PLCs | Count pulses, run/stop status, fault signals | Count, machine status, downtime timer |
| Andon call push buttons Optional | Operator call stations for help or materials | Maintenance, quality or material calls at a station | Station call message, colour change |
| Emergency stop input Optional | Reads an E-stop or line-stop signal | Show line-stopped status when an E-stop is pressed | Line STOP alert, downtime timer |
| Buzzer / siren output Optional | Audible alert driven by the board | Calls, faults, target missed, shift change | Sound alert |
| Strobe / tower light output Optional | Visual status light driven by the board | Run / warning / fault indication on the line | Red / amber / green light |
| Temperature & humidity sensor Optional | Monitors ambient conditions | Workshop, warehouse and cleanroom environments | °C / %RH reading, threshold alert |
| Noise (dB) sensor Optional | Measures workshop sound level | Hearing-safety awareness zones | dB reading, threshold alert |
| PM2.5 / air quality sensor Optional | Measures airborne particles | Dusty processes, painting, woodworking | Air quality reading, threshold alert |
| Vibration sensor Optional | Monitors machine vibration | Early warning on motors, pumps and fans | Vibration status / alert |
| Pressure sensor Optional | Monitors air, hydraulic or process pressure | Compressed-air lines, hydraulics | Pressure reading, threshold alert |
| Flow sensor Optional | Measures liquid or gas flow | Coolant, water and process lines | Flow rate / total |
| Weight / load cell Optional | Measures weight | Filling, packing and batching stations | Weight, count by weight |
| Current / power monitoring Optional | Measures machine current or energy use | Machine running detection, energy tracking | Running status, kW / kWh |
| Modbus RS485 Optional | Serial link to PLCs, meters and sensors | Read counts and values directly from equipment | Any mapped value |
| 4-20 mA analog input Optional | Standard industrial analog signal | Transmitters for level, pressure, temperature | Scaled reading |
| Barcode / RFID reader Optional | Identifies product, order or operator | Job changeover, operator login, traceability | Job / model / operator on screen |
| Door contact Optional | Detects door or guard open/closed | Machine guards, cold rooms, dock doors | Open/closed alert |
| Wi-Fi / Ethernet network Optional | Connects the board to your network | Remote target setting, multi-board sync, data logging | Remote updates, synced data |
| Real-time clock / shift timer Optional | Keeps time and shift schedules | Shift start/end, breaks, takt timing | Clock, shift countdown, auto reset |
Tell us your line, what you want to count and which sensors you need. We will recommend a configuration and send a quote. Email info@proledsigntech.com or call (+1) 647-478-8343.
Technical Specifications
| Sign Type | Full Color Window Sign |
|---|---|
| Brightness | 4500 nits |
| Control Method | LedArt Mobile App (WiFi) + HDPlayer computer software (Windows) |
| Warranty | 3 years warranty on parts |
| Power | 110V AC (standard plug) |
| Made In | Canada (with global components) |
How It Works
Download the LedArt App
Available on App Store and Google Play.
Connect to Your Sign
Connect to your sign’s Wi-Fi network (see label on sign or documentation)
Type Your Message
Supports text, effects, and scheduling.
Send & Display Instantly
Changes appear in seconds.
You can also create and send programs using HDPlayer on Windows. Download software →
