Full Color Window Sign
Forklift / Pedestrian LED Warning Sign
SKU: IND-FORKLIFT
Warranty
3 years warranty on parts
Control
App + HDPlayer Software
Price on request
Premium Duty signs require professional installation services.
Please request a quote by email: info@proledsigntech.com
Request a QuoteMade to order — not ready-made
About 1 week to manufacture, then plus shipping time.
Download datasheet
Product Specifications

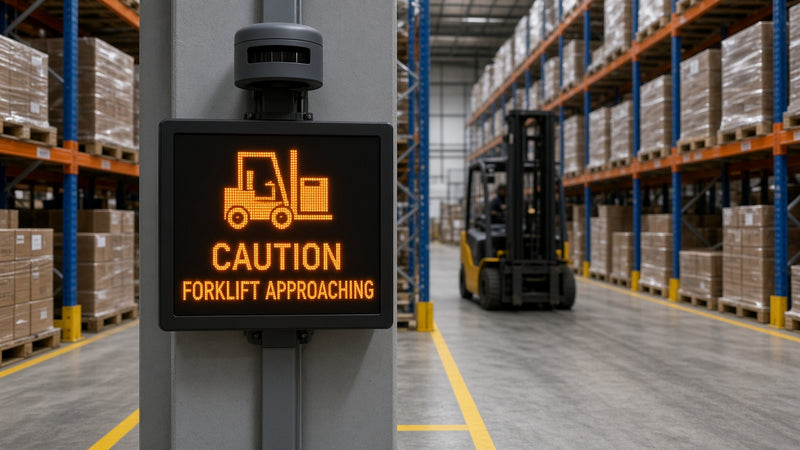

Warn people before they meet a forklift. The PRO-LED Forklift / Pedestrian LED Warning Sign lights up a clear warning at blind corners, aisle ends and doorways when a forklift or pedestrian is detected, so both sides know to stop and look.
Key Features
- Bright LED warning activated by detection
- Mount at blind corners, aisle intersections and doorways
- Choice of detection: radar / microwave, PIR, or tag-based
- Optional beacon and buzzer for an audible alert
- Separate forklift and pedestrian messages (configurable)
- Always-on or detection-only modes
Features, Options & Inputs
All items below are optional or configurable. Availability and configuration are confirmed with your quote.
| Feature / Input | Function | Typical Use | Display / Output |
|---|---|---|---|
| Radar / microwave sensor Optional | Detects moving vehicles and people | Blind corners and aisle ends | Warning ON |
| PIR motion sensor Optional | Detects people by body heat | Pedestrian doorways and walkways | Pedestrian warning |
| UWB / RFID tags Optional | Detects tagged forklifts and/or workers | Tell forklifts and pedestrians apart | Forklift or pedestrian message |
| Beacon / strobe output Optional | Flashing light with the warning | Extra visibility in busy areas | Flashing light |
| Buzzer output Optional | Audible alert | Noisy or low-visibility areas | Sound alert |
| Direction display Optional | Shows which side traffic is coming from | Intersections with several approaches | Arrow / direction |
| Dry contact / 24 V input Optional | Trigger from a door, gate or other system | Doors, gates and existing sensors | Warning ON |
| Hold time Optional | Adjustable on-time after detection | Match warning time to traffic | Timed warning |
| Double-sided option Optional | Warning visible from both directions | Aisle intersections | Two faces |
Tell us where the sign will go and which options you need. We will recommend a configuration and send a quote. Email info@proledsigntech.com or call (+1) 647-478-8343.
Technical Specifications
| Sign Type | Full Color Window Sign |
|---|---|
| Brightness | 4500 nits |
| Control Method | LedArt Mobile App (WiFi) + HDPlayer computer software (Windows) |
| Warranty | 3 years warranty on parts |
| Power | 110V AC (standard plug) |
| Made In | Canada (with global components) |
How It Works
Download the LedArt App
Available on App Store and Google Play.
Connect to Your Sign
Connect to your sign’s Wi-Fi network (see label on sign or documentation)
Type Your Message
Supports text, effects, and scheduling.
Send & Display Instantly
Changes appear in seconds.
You can also create and send programs using HDPlayer on Windows. Download software →
