Premium Duty Outdoor Sign
Emergency Alert LED Sign – 63″×38″ Premium Duty with Built-in Alarm Relay
SKU: EMG-63x38-P5
Warranty
5 years warranty on parts
Control
App + HDPlayer Software
Price on request
Premium Duty signs require professional installation services.
Please request a quote by email: info@proledsigntech.com
Request a QuoteMade to order — not ready-made
About 2 weeks to manufacture, then plus shipping time.
Download datasheet
Product Specifications
Premium Duty emergency signs require professional installation services. Please request a quote by email at info@proledsigntech.com.

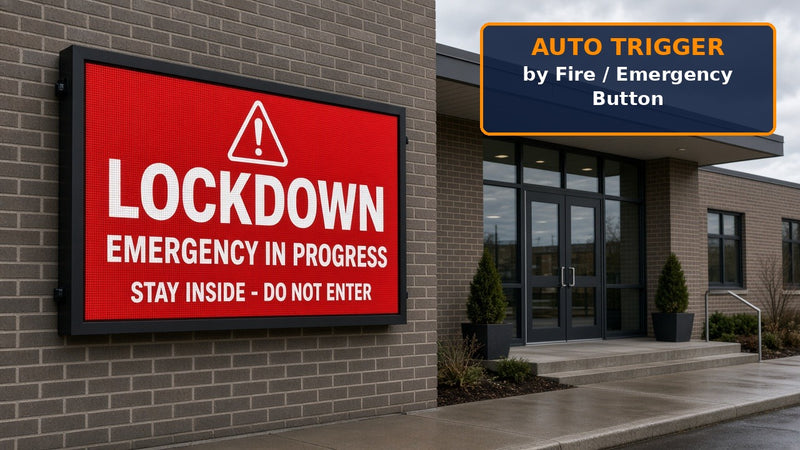

A full color 63" × 38" outdoor LED sign built to connect to a building's life safety system. Built-in relays trigger a preset alarm warning message automatically when the safety equipment closes a dry contact, for example for a fire alarm or a lockdown. The rest of the time, staff type their own messages on the office computer and send them to the sign over the building network.
How it works
- Normal status: shows your custom messages, text, photos or a clock, created in HDPlayer on the office PC.
- Emergency: when the alarm contact closes, the preset emergency warning message is triggered automatically.
- Priority: a triggered preset message always takes priority over custom messages.
- Test switch: an ON/OFF switch on the control cabinet tests the emergency message, with POWER and EMERGENCY indicator lamps.
Specifications
| SKU | EMG-63x38-P5 |
| Display size | 63" W × 38" H |
| Pixel pitch | 5 mm |
| Pixels | 320 × 192 |
| Pixel density | 1,452 pixels / sq. ft |
| Module | 12.6" × 12.6", 40 × 40 pixels, 3 lb |
| Driving method | 1/4 constant current |
| Refresh rate | ≥ 3,840 Hz |
| Video frame rate | 60 frames/second |
| Brightness | 7,000 nits max (auto dim with sensor) |
| Ideal viewing range | 22 ft or greater |
| Viewing angle | 160° (H) / 120° (V) |
| Power consumption | 750 W max / 400 W average |
| Input voltage | AC 110 V |
| Ingress protection | IP67 |
| Operating temperature | -40 °C to +60 °C |
| LED lifespan | 100,000 hours |
| Cabinet | Aluminum, 100 lb |
| Alarm input | Dry contact (terminals X24-3 / X24-8) |
| Control software | HDPlayer (Windows), over the building network |
Technical Specifications
| Sign Type | Premium Duty Outdoor Sign |
|---|---|
| Brightness | 7000 nits |
| Control Method | LedArt Mobile App (WiFi) + HDPlayer computer software (Windows) |
| Warranty | 5 years warranty on parts |
| Power | 110V AC (standard plug) |
| Made In | Canada (with global components) |
How It Works
Download the LedArt App
Available on App Store and Google Play.
Connect to Your Sign
Connect to your sign’s Wi-Fi network (see label on sign or documentation)
Type Your Message
Supports text, effects, and scheduling.
Send & Display Instantly
Changes appear in seconds.
You can also create and send programs using HDPlayer on Windows. Download software →
