Premium Duty Outdoor Sign

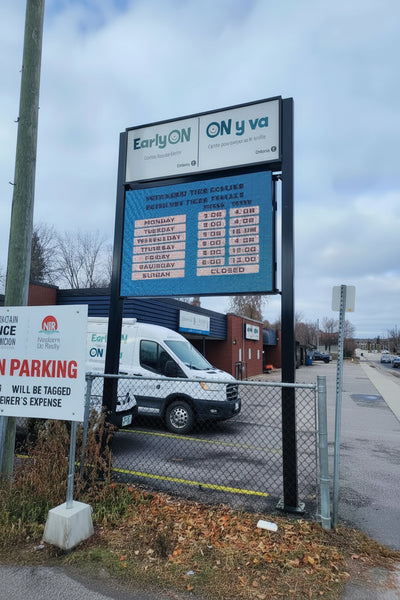

5' by 8' (63" (L) x 101" (H)) Full Color Premium Duty Outdoor LED Sign
SKU: 58P-W
Warranty
5 years warranty on parts
Control
PRO-LED Cloud (phone or computer)
Price on request
Premium Duty signs require professional installation services.
Please request a quote by email: info@proledsigntech.com
Request a QuoteMade to order — not ready-made
About 2 weeks to manufacture, then plus shipping time.
Download datasheet
Product Specifications
5' × 8' Premium Outdoor LED Sign
Professional-grade 5 mm full-color LED display engineered for continuous outdoor performance in all weather conditions.
Built for 24/7 outdoor reliability
Exceptional visibility even in direct sunlight. Maintains message clarity at distances over 100 feet.
Completely sealed cabinet protects against rain, snow, dust, and pressure washing.
Smooth video playback with zero flicker. Ideal for high-quality advertising content.
Lightweight yet extremely durable with excellent heat dissipation.
Technical Specifications
| Specification | Value |
|---|---|
| PHYSICAL | |
| Product Size | 63" L × 100¾" H |
| Cabinet Material | High-grade aluminum alloy |
| Cabinet Weight | 200 lb (90.7 kg) |
| DISPLAY SYSTEM | |
| Pixel Pitch | 5 mm |
| Pixels (Resolution) | 320 × 512 pixels (W × H) |
| LED Package Type | SMD 3-in-1 |
| Pixels Per Sq. Foot | 3,717 |
| Module Dimensions | 12.6" × 12.6" |
| Module Matrix | 64 × 64 |
| Driving Method | 1/8 constant current |
| PERFORMANCE | |
| Refresh Rate | ≥ 3,840 Hz |
| Grayscale / Color Depth | 16-bit (65,536 levels) |
| Contrast Ratio | 3,000 : 1 |
| Brightness | ≥ 6,500 nits |
| VIEWING | |
| Recommended Viewing Distance | 14 ft (4.3 m) and greater |
| Viewing Angle | 160° (H) / 120° (V) |
| POWER & ENVIRONMENT | |
| Max. Power Consumption | 2,000 W (115V 20A per side) |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| RELIABILITY | |
| LED Life Span | 100,000 hours |
All specifications measured under standard laboratory conditions.
Proven durability. Zero compromise on image quality.
Industry-leading coverage with on-site parts & labor support across North America.
LED modules rated for over 11 years of continuous 24/7 operation.
Individual modules can be serviced in under 5 minutes with minimal downtime.
Where this sign delivers maximum impact
Ready to move forward?
Speak with one of our LED display specialists. We’ll provide a detailed quotation within 24 hours.
Technical Specifications
| Sign Type | Premium Duty Outdoor Sign |
|---|---|
| Brightness | 7000 nits |
| Control Method | PRO-LED Cloud (phone or computer); PC software (offline/USB) also supported |
| Warranty | 5 years warranty on parts |
| Power | 110V AC (standard plug) |
| Made In | Canada (with global components) |
How It Works
Open PRO-LED Cloud
Sign in at cloud.proledsigntech.com on your phone or computer.
Find Your Sign
Sign in at cloud.proledsigntech.com/portal. PRO-LED links your sign to your account.
Type Your Message
Supports text, effects, and scheduling.
Send & Display Instantly
Changes appear in seconds.
You can also manage programs from PRO-LED Cloud on your phone or computer, or with PC software (offline/USB) on Windows. Download software →
