Premium Duty Outdoor Sign

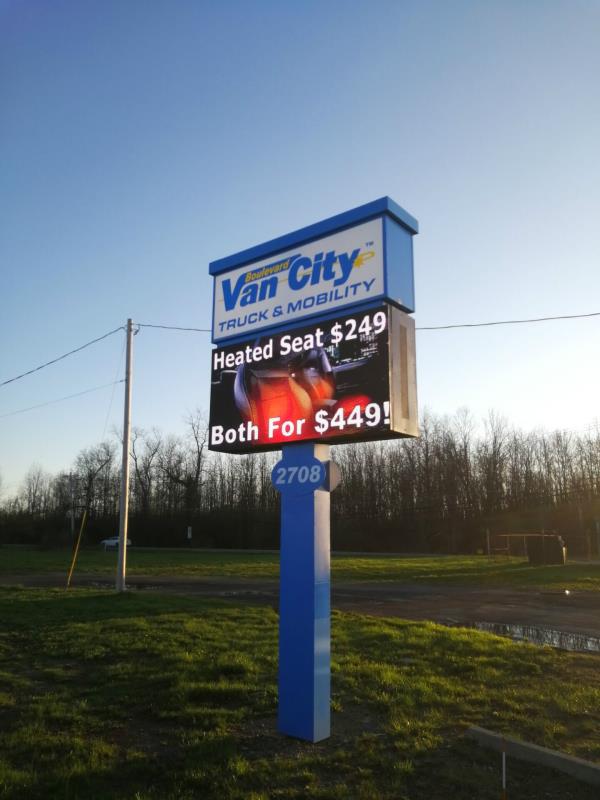

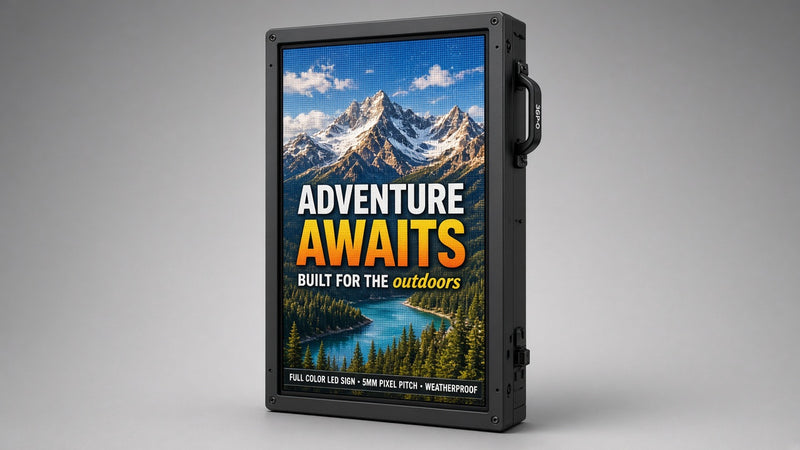

3' by 6' (38" (L) x 77" (H)) Full Color Premium Duty Outdoor LED Sign
SKU: 36P-W
Warranty
5 years warranty on parts
Control
PRO-LED Cloud (phone or computer)
Price on request
Premium Duty signs require professional installation services.
Please request a quote by email: info@proledsigntech.com
Request a QuoteMade to order — not ready-made
About 2 weeks to manufacture, then plus shipping time.
Download datasheet
Product Specifications
This 3' by 6' Full Color Premium Duty Outdoor LED Sign is MET Canada certified, providing exceptional quality and performance in all weather conditions. Backed by a standard five-year warranty, you can trust this product for your outdoor advertising needs.
This full-color, high-grade 3' by 6' outdoor LED sign is perfect for any commercial or industrial occasion. Its 38" (L) x 76" (H) dimensions make it easy to read from a distance and its premium duty construction withstands challenging weather conditions.
Product Specification
|
Product Size
|
37 3/4" L x 75 5/8" H |
| Display Size |
same as above
|
| Pixel Pitch (Resolution) | 5 mm |
| Pixels (Resolution) | 192 × 384 pixels (W × H) |
| LED Package Type | SMD |
| Pixels Per Sq. Foot (Density) | 3,717 |

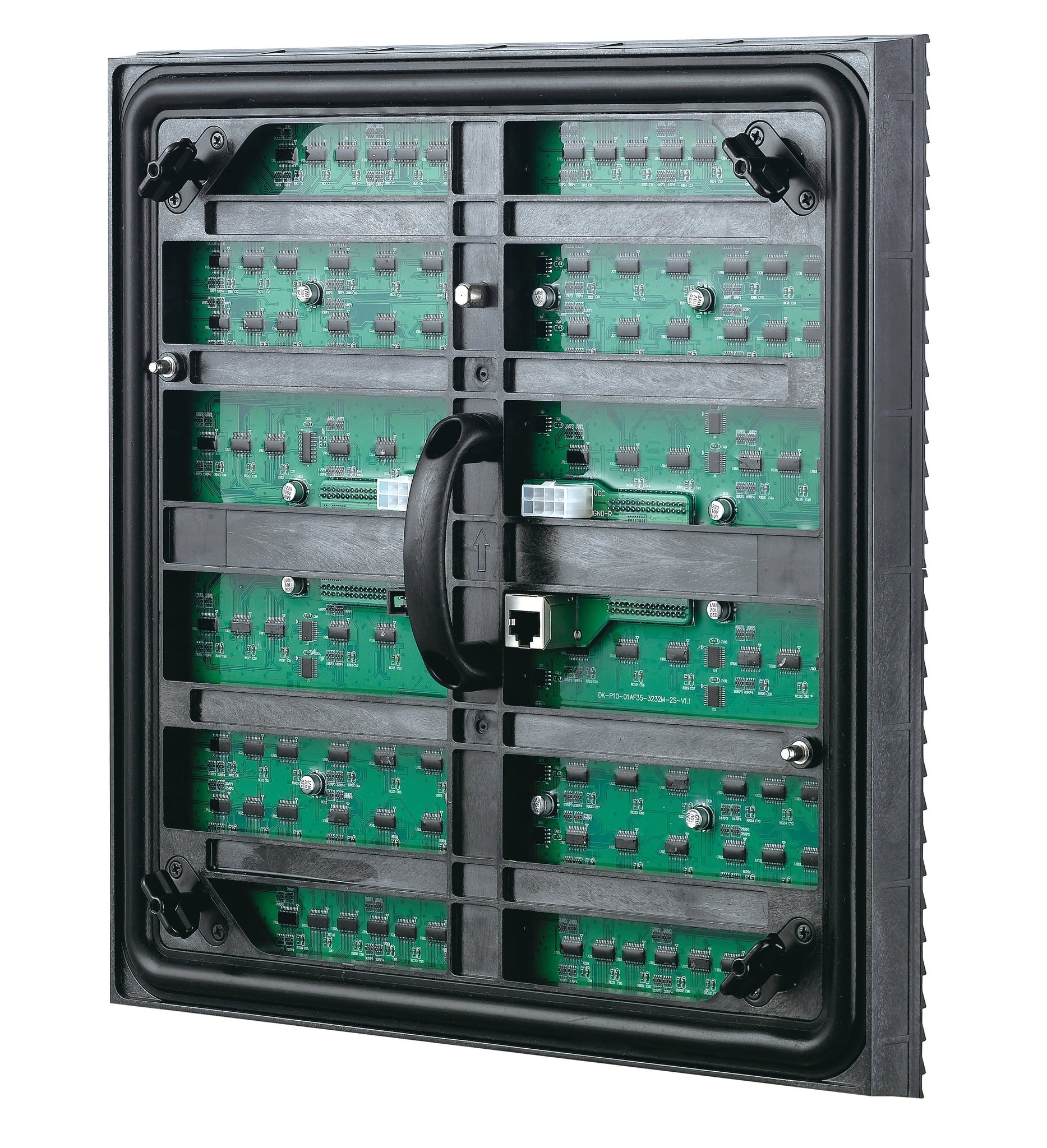

| Module Dimensions | 12.6”x12.6” |
| Module Matrix | 64 × 64 |
| Module Weight | 3 LB |
| Driving Method | 1/8 constant current |
| Refresh Rate | ≥3,840 Hz |
| Video Frame Rate | 60 frames/second |
| Grayscale | 65,536/(281 trillion colors) |
| Color Depth | 16 bit |
| Contrast Ratio | 3,000 : 1 |
| Brightness | ≥6,500 NITS |
| Brightness Control | 256 levels |
| Ideal Viewing Range | 14’ or greater |
| Ideal Viewing Angle | 160°(H) / 120°(V) |
| Max. Power Consumption | 900W |
| Avg. Power consumption |
450W |
| Input Voltage | 110VAC |
| Ingress Protection | IP67 |
| Operating Temperature | -40 °C - +60 °C |
| MTBF | >5,000 hours |
| LED Life - Span | 100,000 hours |

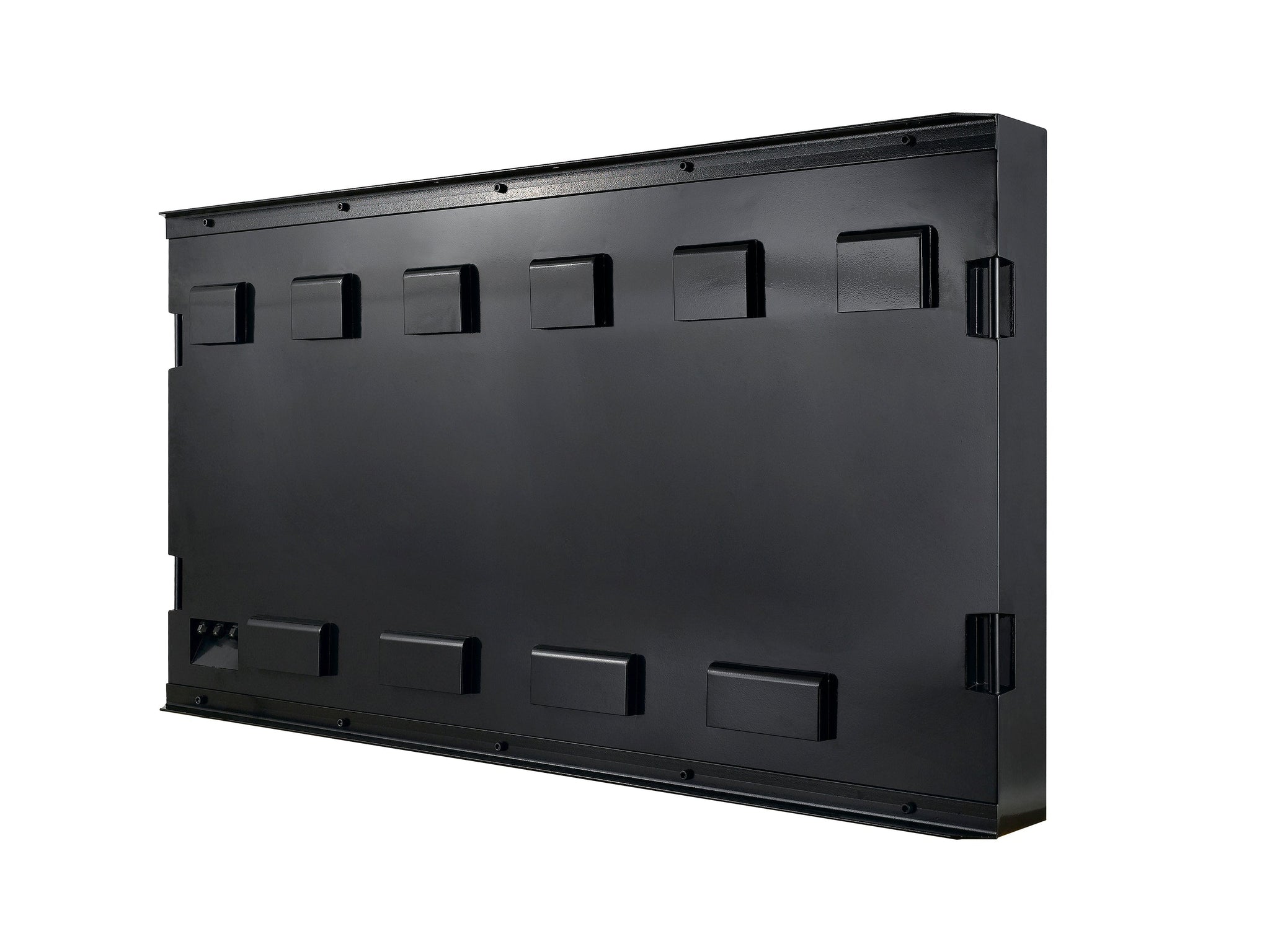

| Cabinet Material | Aluminum |
| Cabinet Weight |
120 LB |
Technical Specifications
| Sign Type | Premium Duty Outdoor Sign |
|---|---|
| Brightness | 7000 nits |
| Control Method | PRO-LED Cloud (phone or computer); PC software (offline/USB) also supported |
| Warranty | 5 years warranty on parts |
| Power | 110V AC (standard plug) |
| Made In | Canada (with global components) |
How It Works
Open PRO-LED Cloud
Sign in at cloud.proledsigntech.com on your phone or computer.
Find Your Sign
Sign in at cloud.proledsigntech.com/portal. PRO-LED links your sign to your account.
Type Your Message
Supports text, effects, and scheduling.
Send & Display Instantly
Changes appear in seconds.
You can also manage programs from PRO-LED Cloud on your phone or computer, or with PC software (offline/USB) on Windows. Download software →
